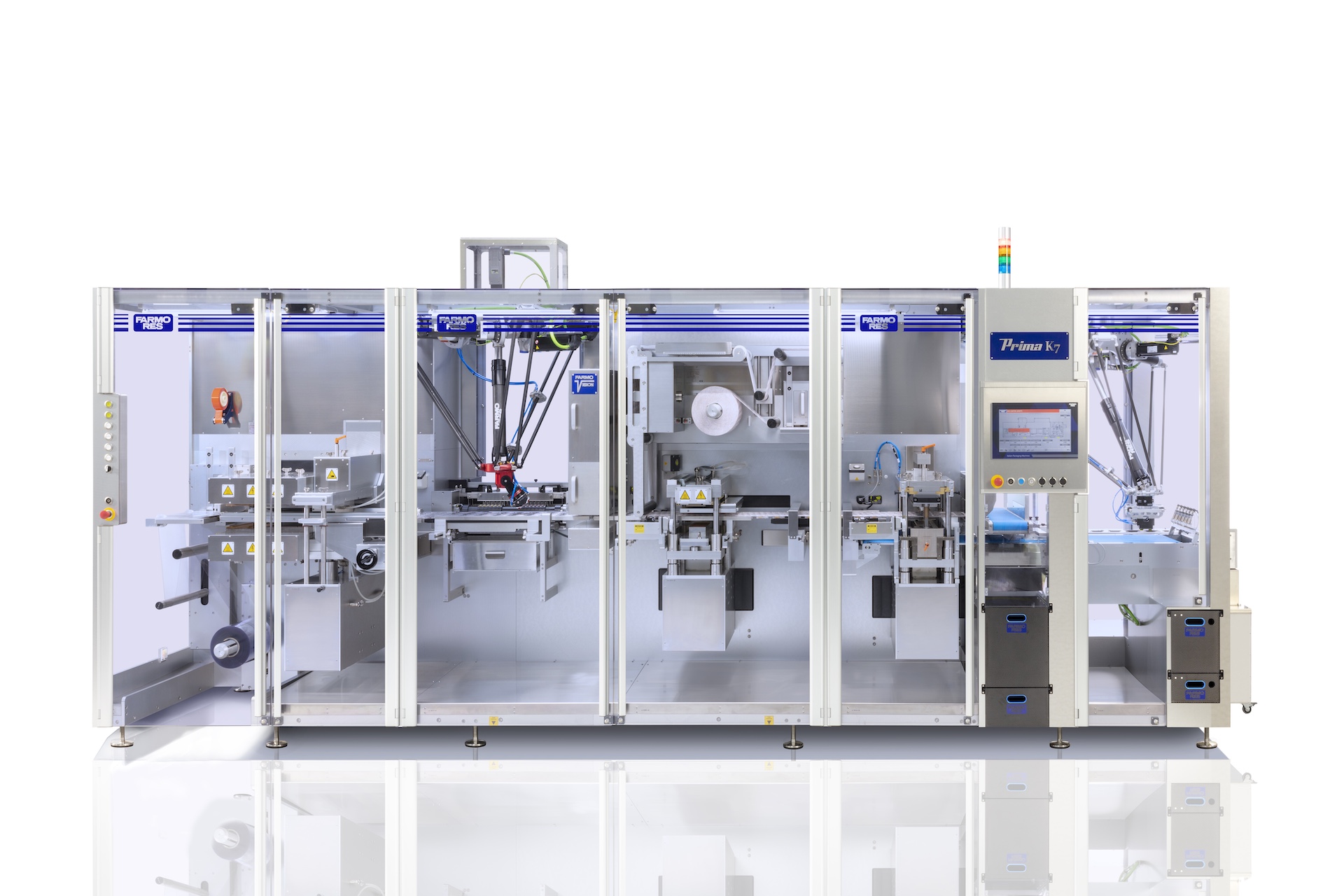

Prima K7

The culmination of over 60 years in forming and sealing technology, the Prima K7 represents the highest level of performance achievable to grant its users maximum efficiency, uptime, and sustainability.

  • Balcony style frame allows “Walk-In” accessibility
  • All main movement groups operated by servo motors
  • Positioning sensors at each cycle guarantees the correct alignment of the sealing and cutting stations with the profile of the blister
  • Positive control of all product loading processes
  • Stop-In-Phase with heating control technology allows the machine to pause and restart in case of an upstream product delay without generating waste
  • Sealing pressure monitoring and calibration
  • Industry leading sealing technology ensures uniformity and quality of lid sealing process
  • Suitable for use with sustainable Recycled PET Forming and Lidding materials
  • Thermoforming and Coldforming capabilities (with upgrade)
Performance Max.
  • 40 forming cycles/minute

  • Variable according to product, material, and format size

Forming material
  • PVC, PET, rPET, PS, and other thermoforming materials

  • Aluminum cold forming

Lidding material
  • Al, paper/Al, polyester/Al, PP, Tyvek

Forming technology
  • Mold and Counter-Mold with integrated vacuum

Sealing technology
  • Platen

Max. forming area
  • PRIMA K7 320-260: 320 mm (web width) x 260 mm (pitch)

  • PRIMA K7 400-220: 400 mm (web width) x 220 mm (pitch)

Max. forming depth
  • 40 mm

Frame
  • Aluminum

Max. reel diameter
  • 700 mm forming material

  • 300 mm lidding material

  • 74 – 78 mm core inner diameter
