C730

The top-load case packer C730 is suitable for packaging of bottles, cartons, bundles, sachets, bags and flow-packs inside corrugated shippers (RSC).

  • Top-load, intermittent motion case packer with speeds up to 15 cases per minute
  • Balcony-style frame provides superior accessibility for ease of operation, changeover, and maintenance
  • Mechanical, servo driven Pick & Place system
  • Positive shipper opening system performed by dual suction cups
  • Full servo driven operation for maximum control, product tracking, and automatic speed adjustment
  • Shipper flap closure by adhesive tape or hot-melt glue
  • Available out-feed station with Print & Apply labeler and reject
  • Serialization ready
Machine Speed
  • 15 cases/minute

Changeover Time
  • 15 minutes

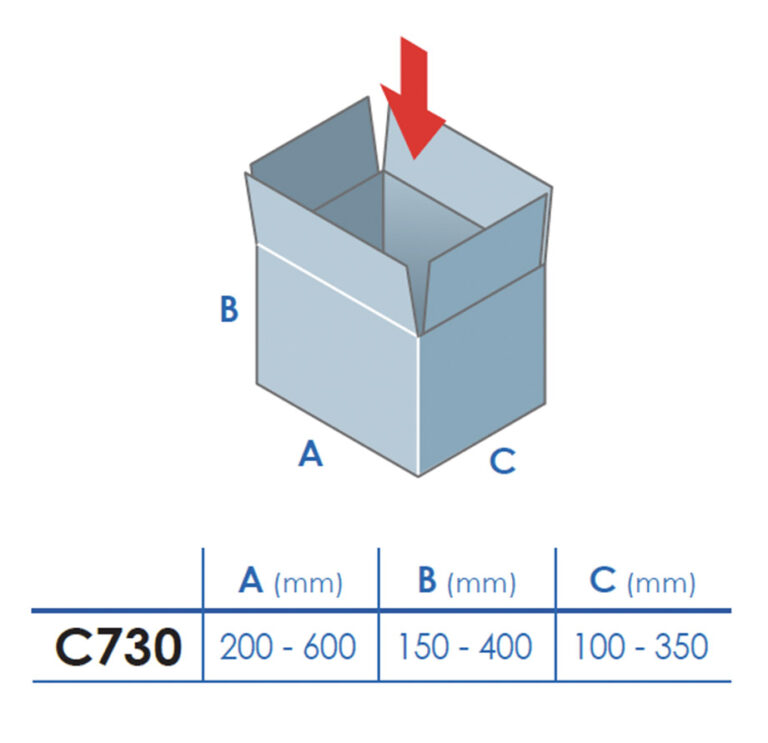

C730 Format Size Range
A (mm): 200 – 600
B (mm): 150 – 400
C (mm): 100 – 350
C730 format size
